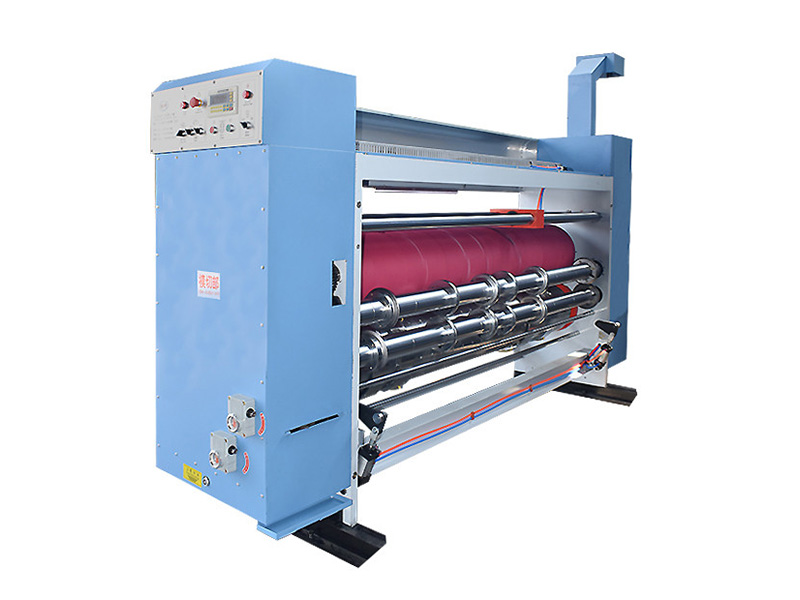

Automatic Feeding Machine Corrugated Carton Flexo Printing Machine 2 Colors
Corrugated carton flexo printing machine 2 colors china manufacturer
- Automatic paper feeding, medium speed machine, machine size can be customized.
- Competitive, low price.
- Optional slotting part and die cutting part.
- Professional carton printing machine manufacturer.
- Carton mechanical design and manufacturing manufacturer
Function and characteristic
◆The whole machine is adopted international famous brand appliances “Siemens, Schneider”.The quality is stable and reliable.
◆The machine shaft, roller are adopted high quality steel, grinding processing, high precision computer dynamic balancing correction and surface hard chromium plating.
◆The engine drive gear is adopted 40Cr, the shaving machining nitrogen treatment, tinted with high precision.
◆Machine transmission parts (shaft, gear joint) is adopted free key connection (LOCK-ALX),clears the connection gap.It is suitable for long-term high speed running with high torque.
◆The machine drive bearing ,important driving parts adopt three big domestic famous brand:Hava los,simple maintenance,long service life.
◆The engine lubrication system is adopted automatic spray type lubrication, equipped with auto oil level balance system.
◆It adopts Working gap adjustment, self-locking type worm wheel and worm gear device , quick performance and convenient adjustment.
◆The main motor is adopted frequency conversion control.It makes start, running more steadily and saves more energy.
◆Rotary die-cutting department and rotary slotting department is optional for you .
◆Option : ceramic anilox roller .stacking ,.
The Machine technique parameter
| 1 |
Color group |
to be configured according to user’s needs |
||
| 2 | Printing paper | A,B,C,A/B,B/C and A/B/C type corrugated paperboard(the maximum interval 11mm) | ||
| 3 | Width of machine inside | 2600mm | 2800mm | 3000mm |
| 4 | max.paper size | 1200×2400mm | 1400 ×2600mm | 1600×2800mm |
| 5 | Max.printing size | 1200×2300mm | 1400 ×2500mm | 1600×2600mm |
| 6 | Skip feeding paper | 1400×2400mm | 1600 ×2600 | 1800×2800 |
| 8 | Printing plate thickness | 7.2mm | 7.2mm | 7.2mm |
| 9 | Design speed（piece/min) | 180pcs/min | 150pcs/min | 150pcs/min |
| 10 | Economic speed(piece/min) | 80-160pcs/min | 80-130pcs/min | 80-100pcs/min |
| 11 | Tinted precision | ±0.5mm | ±0.5mm | ±0.5mm |
| 12 | Slotting precision | ±1.5mm | ±1.5mm | ±1.5mm |
| 13 | Max.slotting depth | 7×300mm | 7×350mm | 7×400mm |
| increase the blade, increase the slot depth | ||||
| 14 | positive knife
Min. Slot distance negative knife
|
170×170×170×170mm
280×80×280×80mm |
170×170×170×170mm
280×80×280×80mm |
170×170×170×170mm
260×90×280×80mm |
| 15 |
Max.die-cutting size |
1200×2300mmmm | 1400×2500mm | 1600×2700mm |
| 16 | Printing plate diameter(contain plate thickness) | ɸ405mm | ɸ480mm | ɸ530mm |
