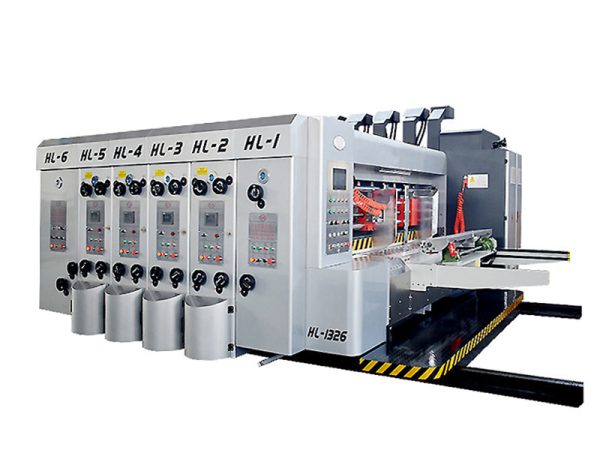

Automatic High Speed Carton Box Flexo Printing Die Cutting Machine
Auto corrugated box flexo printing machine china supplier
1.flexo Printing machine is our main product with 14 years of professional production.
2.The size and printing color of paperboard can be made according to customer requirements.
3.The working speed can be choosed medium speed and high speed.
4.Intelligent operation and automatic adjustment function.improve accuracy, increase production capacity and reduce labor.
5.Made according to European standards
Machine function and characteristic:
- The whole machine is in strict accordance with the European Union CE standard .
- touch screen man-machine interface dialogue and double electric control system has the function of operation, has the intelligence to zero, the memory functions such as automatic reset, store order.
- Whole wallboard ,transfer rollers and important components, Adopt high precision machining centers, CNC grinding machine for grinding processing.
- Intelligent operation and automatic adjustment function are adopted for setting and adjusting dimensions. Simple and fast operation, improve accuracy, greatly increase production capacity and reduce labor.
- The engine drive gear is adopted 20CrMnTi alloy steel, carburizing quenching treatment, hardness HRC58-62 and gear grinding processing precision level 6
- Thespare part and electric component machine adopt the international famous brandlike “NSK” delta, Schneider siemens.
- the engine lubrication system is adopted automatic spray type lubrication.
The Machine technique parameter
1 |
Color group |
to be configured according to user’s needs | ||
2 |
Printing paper |
A,B,C,A/B,B/C and A/B/C type corrugated paperboard
(the maximum interval 11mm) |
||
3 |
Width of machine inside |
2200mm | 2600mm | 2800mm |
4 | Max.paper size | 900×2000mm | 1200×2400mm | 1400 ×2600mm |
5 | Max.printing size | 900×1800mm | 1200×2200mm | 1400 ×2400mm |
6 |
Skip feeding paper |
1100×2000mm | 1400×2400mm | 1600 ×2600mm |
7 | positive knife
Min.paper size negative knife |
300×640mm
300×720mm |
350×720mm
350×740mm |
400 ×720mm
400 ×740mm |
8 |
Printing plate thickness |
7.2mm | 7.2mm | 7.2mm |
9 |
Design speed(piece/min) |
200pcs/min | 180pcs/min | 150pcs/min |
10 |
Economic speed(piece/min) |
80-180pcs/min | 80-160pcs/min | 80-130pcs/min |
11 |
Tinted precision |
±0.5mm | ±0.5mm | ±0.5mm |
12 |
Slotting precision |
±1.5mm | ±1.5mm | ±1.5mm |
13 |
Max.slotting depth |
7 ×220mm | 7×300mm | 7×350mm |
increase the blade, increase the slot depth |
||||
14 | positive knife
Min. Slot distance negative knife |
150 ×150 ×150 ×150mm
250 ×90 ×250 ×90mm |
170×170×170×170mm
260×90×269×90mm |
170×170×170×170mm
260×90×269×90mm |
15 |
Max.die-cutting size |
900 ×1900mm | 1200×2300mm | 1400×2500mm |
16 |
Printing plate diameter (contain plate thickness) |
ɸ300mm | ɸ405mm | ɸ480mm |
Automatic flexo printing slotting die cutting machine
Paper feeding unit:
1.Roller type front feeding structure,rounds, multi-point suction feeding smoothly and accurate.
2.Frequency conversion of suction can adjust the wind volume,and the wind pressure can be adjusted by the size of the paperboard,increase the thin board and the bend board convey stability and accurately.
3.Double conveyor roller structure. Equipped cleaning brush sweep the debris and the high pressure fan ,so that the printing quality can be improved.
4.Left and right side baffle adjustment by computer touch screen control.
5.the 10.4-inch color touch screen control the paper feeding unit,printing unit and the die cutting unit.One-time reset,store orders,memory location.The production speed can reach 60, 80, 100, 120 (pcs/min), cruise control, infrared photoelectric counting, preset the order quantity.
6.The main engine adopts frequency conversion control, start and operation smoothly,saving energy can reach 30%.
Automatic high speed flexo printing slotting machine
Printing unit:
1.The printing roller and the transmission shaft are all adopt high quality steel,computer dynamic balancing correction,eliminate the centrifugal force.Grinding process,hard chrome plating.
2.The printing roller adopts hangs plate device,ratchet fixed volume edition axis,hang all editions of slot,foot switch control of positive and reverse. It’s convenient and fast to load and unload printing plate.
3.Printing phase and axial adjustment:The phase adopt planetary gear type structure,PLC touch screen control and electric digital 360° adjustment.
4.The clearance of setting ink,the printing press roller,the clearance of paperboard guide roller adopts two stage turbine box to adjust.
5.Remove the plate and reset function,computer memory printing position,automatic reset after removing the plate.
6.There is lack of ink alarm device and the real-time monitoring for the ink working condition system
Automatic high definition flexo printing slotting machine
Die cutting unit:
1.Rubber gasket roller:centrifugal casting steel cylinder,computer dynamic balancing correction,surface grinding,hard chrome plating.
2.die cutting roller:centrifugal casting steel cylinder,computer dynamic balancing correction,surface grinding,hard chrome plating.(Optional:free plate die cutting slotting steel knife mold,do regular box slotting,the use of the corner cutting has box height synchronous adjustment function)
3.Die cutting roller phase and axial adjustment,the phase adjustment adopt planetary gear type structure,PLC touch screen control and electric digital 360° adjustment,
4.Rubber roller cutting repair mechanism,rubber gasket can be used repeatedly,thereby,it can greatly save the cost.
5.Differential compensation device,automatic adjust the revolutions of the rubber gasket roll,make the shape of the die cutting carton box as same as the knife mold.
6.Rubber gasket roller mechanical transverse set ±40mm,to improve the service life of the die cutting rubber gasket.
Carton flexo printing slotting die cutting machine
Stacking unit
- The height of stack is 1600mm.
- Therise and descending of the machine tool platform is driven by the powerful chain, the rise and descending motor has equipped the brake function.
- With the paperboard pilling to the higher lever, the machine tool platform automatically adjusts the tilling height.
- Setting the save protect device, which was force the platform can not failingdown abruptly, can make the worker safety.
- The surface corrugated belt can prevent the sliding of the paperboard.
- Combined application design for chip-removing brush and chip-removing blower can guarantee result of removing chip.
