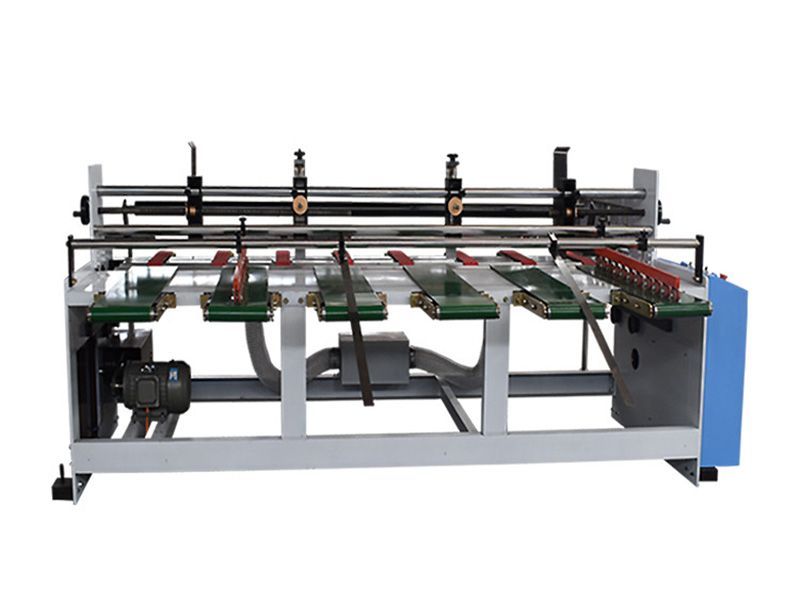

Automatic Pre Feeding Machine For Corrugated Cardboard

Auto carton paperboard pre feeder machine china supplier

Automatic paper feeder is a model matching semi-automatic printing machine. Automatic continuous paper feeding can be achieved.
Low price, increased production capacity and reduced labor.
Speed: 60 Tablets / minute.
Suitable for 3/5/7 layers of corrugated board.
The delivery period is 14 days.

Share This Page

Main technical parameters:

The max feeding size	2600MM
The min feeding size	300MM
The max speed	60pcs/min

Automatic paper feeding machine is a continuous paper feeding equipment developed and produced for the carton printing of the original chain paper feeding in the carton factory, and the forming machinery can not produce continuously in large quantities. Thus, the manual sheet feeding is changed to continuous paper feeding to ensure the alignment of the paperboard, which not only improves the work efficiency, but also reduces the labor intensity of workers and the scrap rate.

The size adjustment of paperboard adopts screw rod adjustment mechanism. It is operated by one person. It is simple and fast.
Convenient adjustable code paper table, better adapt to various paperboards, and the paper feeding is stable and accurate.
The paper feeding belt adopts high-quality rubber seamless belt, which has high friction, long service life, low noise, easy maintenance and high economic benefits.
Double tension control, convenient and reliable.
The transmission shaft adopts patterned roller to increase the friction with the paper conveyor belt to ensure smooth and high-speed transportation of paperboard.
The machine has an electromagnetic clutch release braking mechanism.
The electric appliance of this machine adopts PLC automatic program control, with a high degree of automation.
The frequency converter drives the motor to realize speed regulation and stable operation.
The photoelectric signal controls the electromagnetic clutch braking through PLC to realize synchronization with the host.
The electrical parts adopt international and domestic well-known brands to ensure the stable operation of the machine.

Performance of automatic paper feeder

The air path of the paper feeder head is centrally controlled by the integrated pipeline, which is convenient for operation;
Angle adjustment is added to the paper loosening suction nozzle, and knob control is added on the panel to facilitate operation;
Paper feeding speed > 12000 sheets / hour.
The design integrates machine, electricity and gas, with generous and solid appearance and convenient operation;
The cam of the paper conveyor has excellent design, stable operation and accurate paper feeding;
