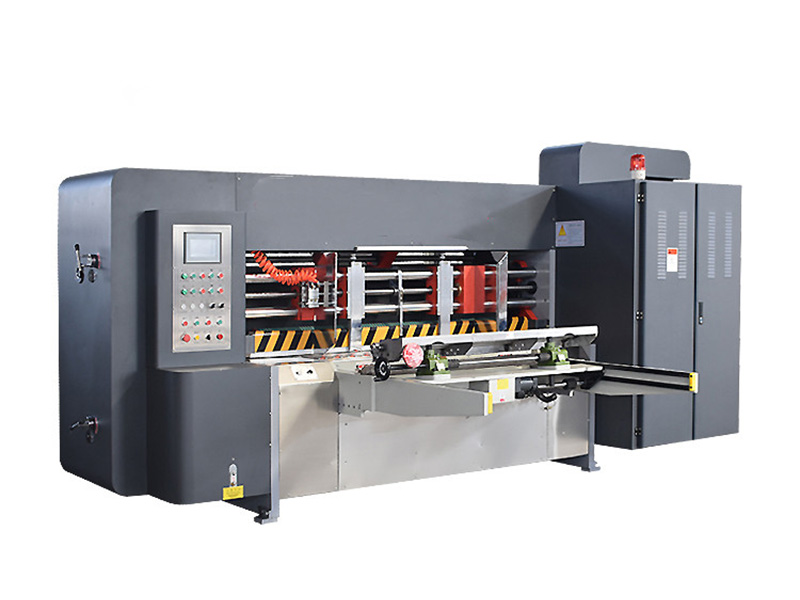

Carton Box Making Machine Automatic Rotary Die Cutting Machine
Automatic carton rotary die cutting machine china factory
- The high-speed rotary die-cutting machine is suitable for special-shaped corrugated boxes such as pizza boxes. Suitable for 3/5/7 layers of cartonboard.
- Full automatic paper feeding, with a maximum speed of 160 pieces / minute. Greatly improve production capacity and save labor.
- Operate the machine intelligently and set parameters on the touch screen. Simple operation and time saving.
- The rubber pad of die-cutting roll made inGermany. Install the automatic traverse device to extend the service life of the rubber pad.
- The electrical accessories used are international famous brands, such as Siemens, Schneider, etc.
Share This Page
Functions and characteristics:
- Automatic suction paper feeding. Variable frequency air suction can adjust the air volume and increase the stability and accuracy of sheet and curved paperboard transportation.
- The paper feeding roller adopts pneumatic elastic paper feeding, and do not damage the strength of corrugated board.
- The paper feeding side baffle and rear stop box are controlled by PLC Computers and electronics.
- Imported control system, Siemens, Schneider low voltage electrical appliances.
- Die roll and rubber roll are made of cast steel.
- The rubber pad is imported from Taiwan with long service life. About 12 million times,
- The rubber roller is 40mm in the transverse direction, and the traveling device andpneumatic device control the up and down movement of the cutter head to prolong the service life of the rubber pad (photoelectric control).
- Electric repair device is adopted for repair to improve the repetition rate of rubber pad, which can be repaired for 3-4 times.
- The die cutting drum adopts pneumatic automatic separation device.
- Mold roll phase, PLC touch screen control, electric digital 360 degree adjustment.
The Mechine technique parameter:
Model | unit | 1200×
2200/2400/2600 |
1400×
2200/2400/2600 |
1600×
2400/2600/2800 |
Max cardboard
size |
mm |
1200×
2000/2200/2400 |
1400×
2000/2200/2400 |
1600×
2200/2400/2600 |
Min cardboard size | mm | 350×600 | 400×600 | 450×600 |
Cardboard
thickness |
mm | 2-8 | 2-8 | 2-8 |
Design speed | pcs/mi
n |
160 | 160 | 160 |
Economic speed | pcs/min | 80-140 | 80-140 | 80-120 |
Max die cutting
size |
mm |
1200×
1950/2150/2350 |
1400×
1950/2150/2350 |
1600×
2150/2350/2550 |
Attachment mould roller diameter | mm | ф360 | ф432 | ф487 |
Transmission gear
- the main drive gear adopts 40Cr forging and high frequency quenching
Fine grinding processing, processing gear. - six level accuracy, smooth running, low noise and hardness
HRC55-60, long life, little wear, can long
Time guarantee accuracy unchanged. - the whole machine gear adopts the free key connection, the ring locking, no gap connection, to ensure the die cutting accuracy.
lubrication:
- mechanical oil pump (double oil pump, oil circulation)
- circulating oil supply, gear with oil evenly.
- the lubrication adopts closed spray lubrication system to ensure the transmission precision life
Stacking unit :
- The paper receiving arm can be operated manually or automatically, with safety mechanism and safety device.
- The lifting of the bed table is driven by a strong chain.
- The stacking height is 1600mm.
- The bed table automatically adjusts the tilt with the stacking height of paperboard, high speed, lifting motor, with braking function.
- Pneumatic paper lifting mechanism.
- Flat wrinkled belt to prevent cardboard from sliding.
