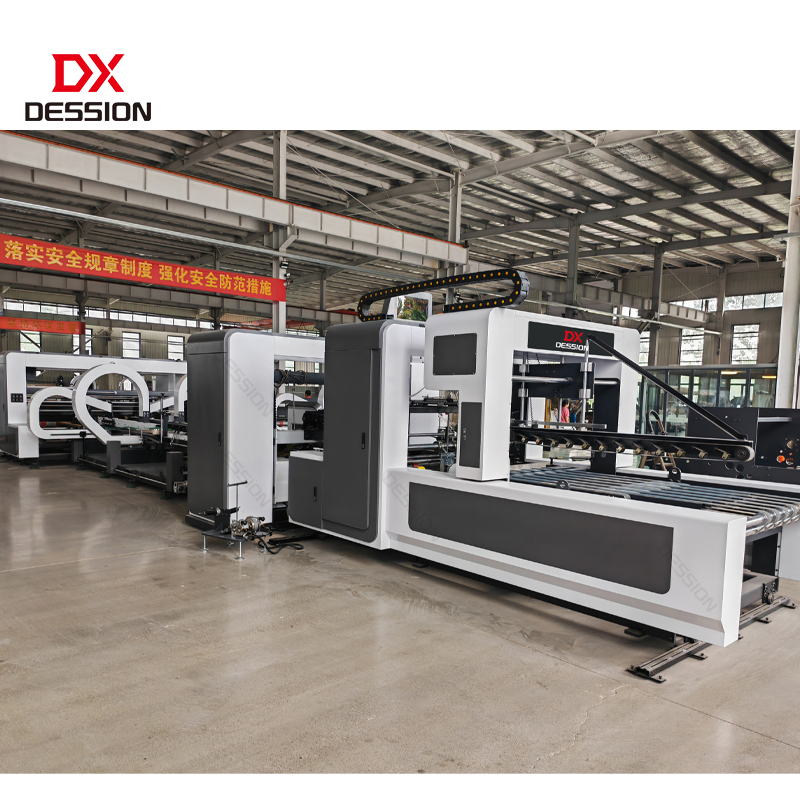

Carton Gluing Machine Automatic Corrugated Carton Folder Gluer Machine
Automatic corrugated carton folder gluer machine china manufacturer
- The fully automatic high-speed box folding gluing model is suitable for the gluing of conventional corrugated boxes.
- Frequency conversion speed regulation is adopted, and PLC touch screen is configured, so the operation is simple and reliable.
- Automatic paperboard feeding, with a speed of 150 pieces / minute, high production capacity and labor cost saving.
- Conventional size can make corrugated board gluer 430-2800mm. Larger sizes can be customized. It can be made up to 6000 mm.
- The delivery period is 30 days.
Share This Page
Features:
- Average glueing speed should be 8000-10000pcs per min, which improves productivity greatly.
- Two workers should assist to deal with whole producing line. Paperboard feeding, glueing, folding, adjusting, acounting can be done automatically.
- Adopted leather belt delivery feeding with airdraft.
- All convery belts were tooth nailed for accuracy. It equipped re-pressing function so that even more accurate whenfolding.
- Automatic re-adjusting if happen paper skew. Lowen defective rate.
- Improving folding accuracy if happen paper skew through differential adjusting function. Scissors shapetail could nothappen.
- Automatic accounting, shape adjusting then stacking. All carton can be piled up according to a cartain quanlity.
- Can match with automatic strapping machine.
Main technology parameter:
Model | HL-2400 | HL-2600 | HL-2800 |
Max.Cardboard | 900x2200mm | 1200x2400mm | 1200x2600mm |
Min.Cardboard | 300x800mm | 300x800mm | 300x800mm |
Overall dimensions | 12800x2850x2250mm | 12800x3050x2250mm | 12800x3250x2250mm |
Power Required | 10kw | 11kw | 12kw |

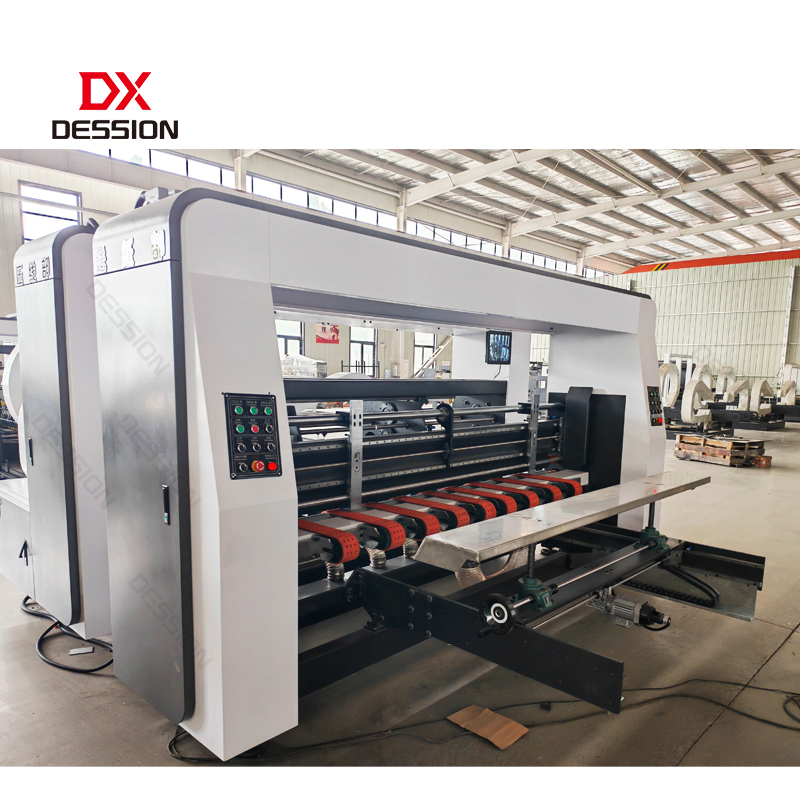

Feeding Unit-leather belt feeder with vacuum suction
- Feeder belt made of leather belt with holes, vacuum suction for supporting paper board feeding.
- Available for feeding BENT paperboard
- Clutch and break function adopted in feeding unit enable to feed paper or stop seperately,easy to operate and control

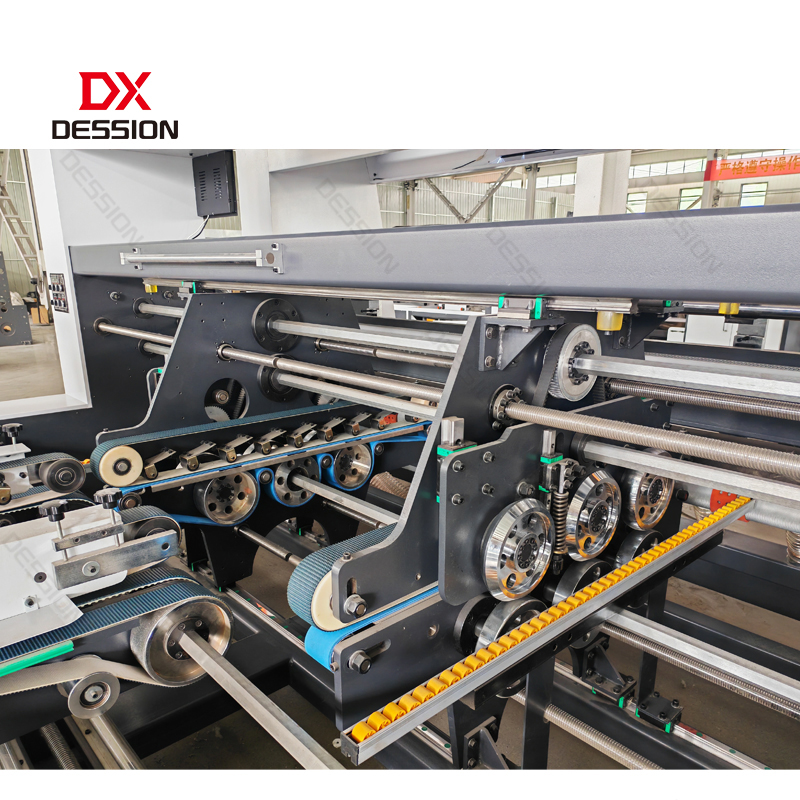

Secondary Correction Part
To eliminate the fish-tail for a better yield.

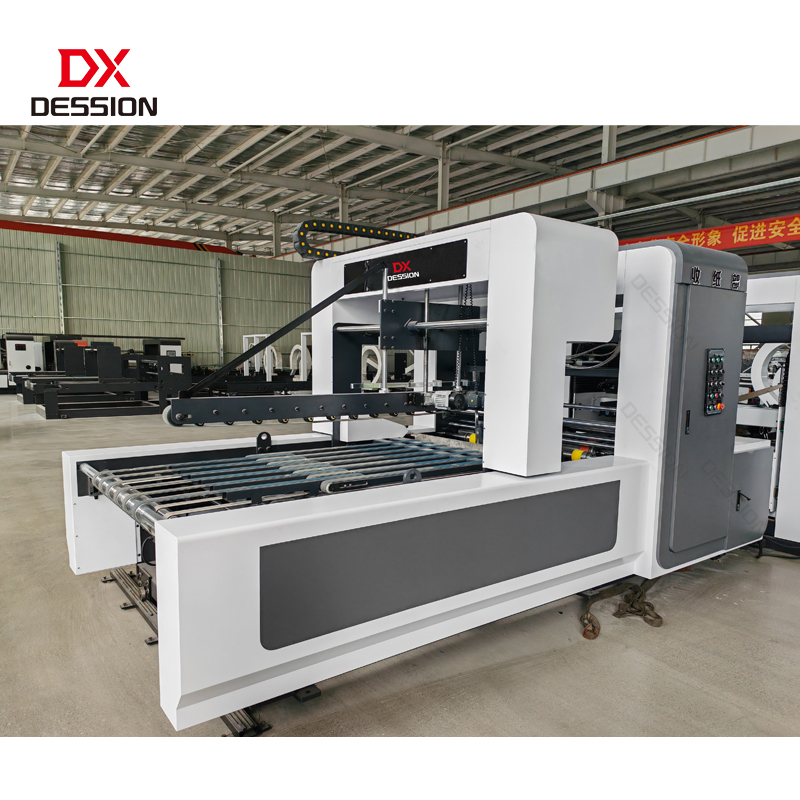

Received the Department of Paper Plastic:
Finished boxes automatic counting,plastic,stacked neatly,quasi-yards out,stacking velocity 130m/min.
