ML-1100 Corrugated Cardboard Manual Die Cutting And Creasing Machine

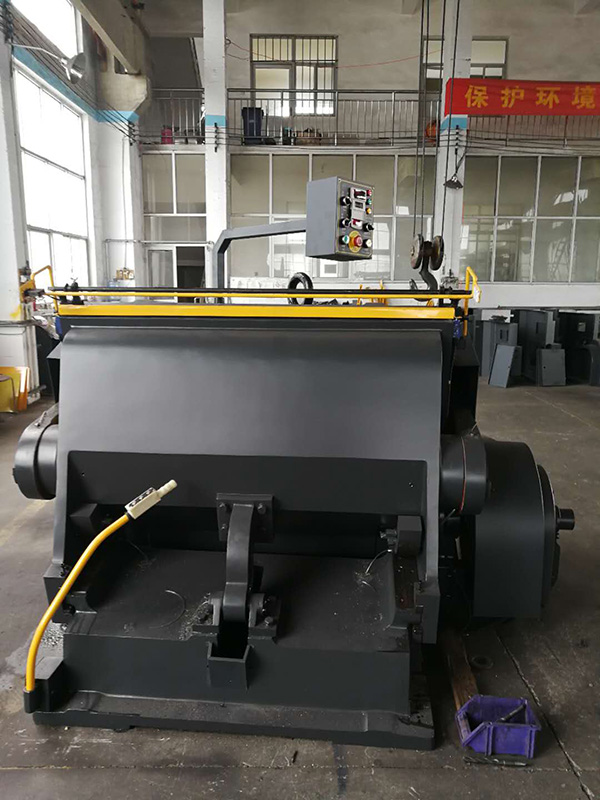

ML-1100 corrugated cardboard manual die cutting and creasing machine (3)

ML-1100 corrugated cardboard manual die cutting and creasing machine (5)

Cardboard manual die cutting creasing machine china factory

This die-cutting machine is suitable for corrugated board, cardboard, plastic, leather, etc.
Die cutting of pizza boxes, special-shaped boxes, etc.
Low price, super durable features.
Multiple safety precautions. The operation is simple and safe.
Plate and frame can be adjust.

Share This Page

Product Description

ML series hand feed die cutting and creasing machine is special equipment of die cutting and creasing a wide range of materials, such as paper, cardboard, plastic sheet and leather. It is applicable to the fields of printing, packaging, decoration and plastic industries.It has been well accepted by the customers from domestic and oversea market due to its outstanding performance, good quality, easy for operating , good service and low cost in price.

Features

The casting material is HT250 gray cast iron and with annealing treatment so as to achieve the casting not easy to deformation, breakage.
The principal axis mainly adopt of 4Cr13MoV and with thermal refining treatment to improve the main-shaft’s intensity and rigidity, hardness and adhesive the effort of uneasy deformation.
The main parts of gear is made of 4Cr13Mov and with thermal refining treatment.
The machine’s guide plate is made of 38crmoral and with nitrogen treatment to increase intensity and make it not easy to wear. It can keep a long time balance of machine’s fluctuation pressure.
The single plate electromagnetic clutch is nimble and reliable.
It has the function of continuous cutting and opening dwell. Dwell is adjustable.
The motion link (arm drag) is mainly made of nodular cast iron. It has the advantage of intensity, toughness and strong compression.
The key parts of bearing is mainly made of Harbin bearing.
The lubrication of concentrated refuel, manual refuel (optional) can better the oil flow in good condition and its maintenance.
Transmission bearing is made of composite bushing (Ensure the lubrication), connecting roads PM bushing to increase the machine’s precision.
The machine electrical is made from Schneider electric.
Hand on triangle limit switch, emergency switch, hand push rod limit switch. Three insurance device. Ensure safety.
Plate and frame can be adjust.
die cutting pressure 150t.

The technique parameter

Model	Inner chase size (mm)	Speed (strokes/min)	Max.rule length (m)	Motor power	Overall dimension (mm)	Machine weight (kg)
ML750	750X520	25±2	≤15	2.2kw-6H 380V	1500x1320x1600	2000
ML930	930×670	23±2	≤25	3kw-6H 380V	1700x1550x1700	3000
ML1100	1100X800	22±2	≤30	4kw-6H 380V	2050x2030x1700	4200
ML1200	1200×830	22±2	≤35	5.5kw-6H 380V	2150x2030x1700	4800
ML1300	1300×920	18±2	≤40	5.5kw-6H 380V	2400x2100x1950	5600
ML1400	1400×1000	18±3	≤45	7.5kw-4H 380V	2450x2100x2000	6500
ML1500	1500×1050	15±2	≤45	7.5kw-6H 380V	2550x2100x2100	7500
ML1600	1600×1250	15±3	≤50	15kw-6H 380V	2700X2200X2200	13500
ML1800	1800X1280	13±2	≤60	15kw-6H 380V	2900X2200X2250	14200
ML2000	2000X1400	12±2	≤65	15kw-6H 380V	3100X2200X2250	15500
ML2200	2200X1400	12±2	≤70	15kw-6H 380V	3300X2250X2000	16000
ML2500	2500X1400	12±2	≤80	15kw-6H 380V	2500X2250X2100	18000
